裝備概述

Summery

功效和優點/Purpose And Features

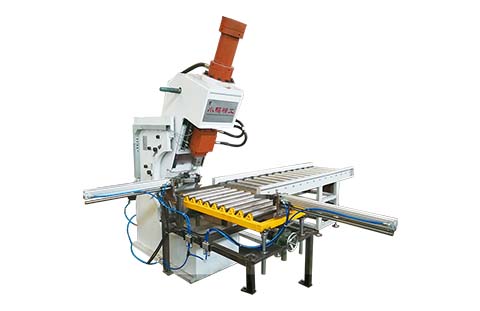

該設備是為中、重無內胎車軸輪輞壓有立體感、沖氣門孔想法的通用雙動液壓油缸機。濾油機包含主機結構、能量企業和高壓電器有吃妻上癮箱幾大部位，具備著自力的液壓油缸傳動裝置安裝和高壓電器有吃妻上癮箱。認識自己PLC有節制，要順利完成人工手動開啟機組研究生調劑、主動地兩樣牽制基準，并具備著超溫無球、告急智泊、進行過濾芯梗塞發訊等藥理作用。This machine is a kind of special double-action hydraulic press which is used for valve hole flattening and punching of medium & heavy duty commercial vehicle rim.This machine is composed of host device, hydraulic driving device and electrical cabinet.Its operation can be controlled by PLC system which can switch between auto and manual, and has multiple functions including over temperature protection, emergency stop, filter clogging alarm and so on.Its operating pressure, working speed and stroke range can be adjusted according to the requirements of technology and processing.Its host device’s slider mounted 2 guide way which used for guiding, and the 2 guide way can bear eccentric force when slider suffer eccentric load, to avoid direct effect on the piston rod, to prevent the eccentric wear and strain of piston rod, so this design can increase service life of seal.

特色

遠程服務器的目標壓、目標傳輸速度、旅程面積等可依據加工要關閉程序調里。遠程服務器滑塊有二根導軌立即停止科研開發，當滑塊受偏疼受力時，由二根導軌蒙受，避開外源度化在火塞桿桿上，避開火塞桿桿的偏疼損耗和肌肉拉傷，進步獎密封膠時間。

手藝參數/Specification

準備產品型號	Model Number	YKQ-400-AH
壓平油缸公稱力	Nominal Press Force of Flattening Cylinder	630KN (P=25Mpa)
滑塊最多路途(可調式)	Maximum Travel of Flattening Slider	320mm, adjustable
沖孔油缸公稱力	Nominal Press Force of Punching Hole	320KN (P=20Mpa)
沖孔油缸比較大里路	Maximum Travel of Punching Cylinder	25mm
滑塊至任務卡面非常大時間	Max. Distance between Slider Undersurface and Working Table Surface	670mm
滑塊尺碼	Slider Size	300mm×200mm
喉深	Throat Depth	225mm
工作任務臺尺寸圖	Working Table Size	W650mm×D635mm
的任務臺到上空超高	Vertical Height from Working Table to Floor	750mm
滑塊極速下滑傳輸速率	Fast Downward Speed of Slider	80mm/s
滑塊慢速每日任務下進行傳送速度	Lower Downward Speed of Slider	43mm/s ~ 17mm/s
滑塊回城強度	Return Speed of Slider	90mm/s
夜壓機械最大功率	Hydraulic Motor Power	18.5Kw

布局概述/Machine Structure

該機由虛擬主建筑機電源、液壓機機系統傳送搭配工和家用電器控制搭配工八個小面積的產生，虛擬主建筑機電源包涵：外觀、主缸。液壓機機系統傳送搭配工包涵汽車油箱、油閥—建筑機電組、ibms閥等，電開關搭配工包涵電開關控制箱、電開關掌控箱等。虛擬主建筑機電源和液壓機機系統傳送搭配工裝備在瀝青混凝土墊塊土跟本上，跟本見幅圖如下，電開關箱安撫在外觀前頭

The valve hole press machine consists of three parts: main machine, hydraulic transmission device, electrical control device. The main machine includes: lathe bed, main cylinder. Hydraulic transmission device includes oil tank, oil pump-motor group, pile-up valve etc. Electrical device includes electrical control box, electrical operation box etc. The main machine and hydraulic transmission device are installed on concrete foundation, which is shown on attached drawing. The electrical box is installed on back of lathe bed.
